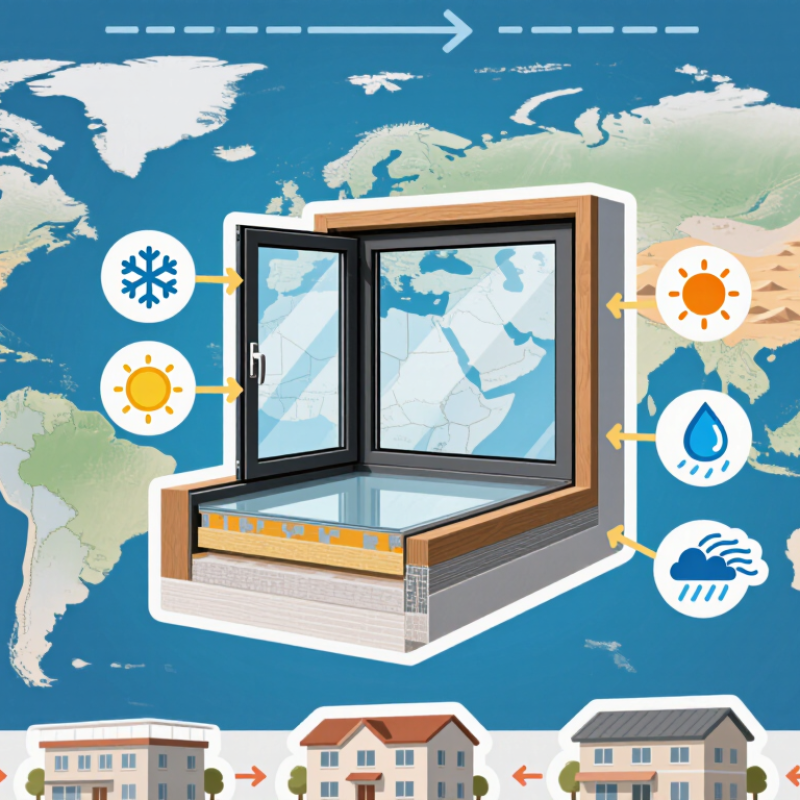

Choosing precision windows across international markets is not a catalog exercise. Climate, façade design, installation practices, and local performance requirements all shape the right specification. A unit that performs well in a mild coastal climate may struggle with desert heat, winter wind, or driving rain.
The U.S. Department of Energy’s Energy Saver guidance estimates that windows account for 25–30% of residential heating and cooling energy use in the United States. That figure is not a worldwide average, but it shows why small specification errors can have practical consequences. A low U-factor, for example, matters in cold conditions; solar heat gain and exterior shading may matter more in hot, sunny locations. Ratings must be read in context.
Berkeley Lab building scientist Steve Selkowitz has studied high-performance windows and building systems. His work supports a useful principle: evaluate the complete window system, not just its glass. That means checking frame material, glazing, seals, hardware, tested performance, and installation details together. A fine product can still disappoint when the opening is poorly prepared or the drainage path is blocked.
Small details matter.
This guide presents seven practical checks for choosing precision windows worldwide, from climate fit and verified ratings to customization, supplier quality, and after-sales support. Ask for test documentation and confirm which standards apply to the project’s destination. Also ask who handles installation and warranty claims. One point deserves extra scrutiny: performance claims can be difficult to compare when test methods differ. Verify before you specify.
7 Tips for Choosing Precision Windows Worldwide
Define the application before requesting a quotation. A window for vacuum imaging faces different risks from one used in outdoor sensing. List wavelength, power density, temperature range, pressure, cleaning method, and mounting direction. These details determine the glass type, coating, edge finish, and environmental testing. A common shop-floor mistake is treating optical quality as a single number. It is not.
Dimensions need more than length, width, and thickness. Specify clear aperture, chamfer size, flatness, parallelism, and allowable edge chips. ISO 10110-5 covers surface form, while ISO 10110-7 addresses surface imperfections. Use the same notation in every drawing. Otherwise, a supplier may interpret “flat” as cosmetic rather than functional. That small wording gap can shift alignment after installation.
Precision requirements should connect directly to system performance. For example, angular transmission errors may redirect a narrow beam, while thickness variation can change focus in a sealed assembly. NIST Technical Note 1297 states that a coverage factor of k = 2 commonly represents about 95% confidence under normal conditions. Request measured values with the uncertainty, not just a pass-or-fail result. Ask whether inspection uses calibrated interferometry, contact gauges, or visual comparison. The methods are not equivalent. International projects also need units, datum references, and inspection temperature stated clearly. A 20°C specification may not represent a window operating at 80°C. Reflection is useful here: the tightest tolerance is not always the best tolerance. It should protect the application, not merely enlarge the purchasing specification.
| Tip | What to Define | Example Specification or Data | Why It Matters | How to Verify |
|---|---|---|---|---|
| 1. Define the application and wavelength | Identify the instrument, operating environment, and the wavelength band that must pass through the window. | Example: a visible-light inspection system operating from 450–650 nm in a dry indoor environment. | Material transmission, coating design, and environmental suitability depend on the wavelength and operating conditions. | Provide the operating wavelength range, angle of incidence, temperature range, and exposure conditions in the specification. |
| 2. Specify the clear aperture and overall dimensions | Separate the usable optical area from the outside diameter or length and width. | Example: a 25 mm diameter window with a 22 mm minimum clear aperture; specify thickness and edge treatment separately. | The clear aperture must cover the optical beam or field of view, while the remaining edge area allows for mounting and handling. | Show a dimensioned drawing that identifies the clear aperture, thickness, edge chamfer, and dimensional tolerances. |
| 3. Match the material to the operating band | Choose a substrate based on transmission range, strength, thermal behavior, chemical exposure, and application requirements. | Fused silica is commonly used for ultraviolet-to-near-infrared applications; borosilicate glass is commonly used for visible-light applications. Confirm suitability for the actual wavelength and environment. | Different materials have different transmission limits, thermal expansion, durability, and fabrication characteristics. | Request the substrate type and applicable transmission data for the specified thickness and wavelength range. |
| 4. Set flatness and transmitted wavefront requirements | Define surface flatness or transmitted wavefront error over the clear aperture, including the measurement wavelength and method. | Example planning target: transmitted wavefront error no greater than λ/4 peak-to-valley at 632.8 nm over the clear aperture, when appropriate for the optical system. | These requirements affect image quality and beam distortion. A surface-flatness value alone does not fully describe transmitted optical performance. | Ask for an interferometric test report that states the aperture, test wavelength, and whether the result is surface flatness or transmitted wavefront error. |
| 5. Define parallelism or wedge only as needed | Specify allowable angular deviation between the two faces when beam steering, ghost reflections, or assembly alignment are concerns. | Example: state a maximum wedge in arcminutes or an equivalent angular tolerance; choose the limit based on the system's allowable beam deviation. | Parallel faces can create reflected beams, while intentional wedge can direct reflections away from the optical path. | Include the wedge or parallelism limit on the drawing and request a measurement method or inspection result. |
| 6. Choose surface quality and coating performance | Specify cosmetic surface quality and coating performance separately, including the wavelength band and angle of incidence. | Example: define a scratch-dig grade using a recognized convention, such as MIL-PRF-13830B, and state a reflectance or transmission target for the coating over the required band. | Surface defects and coating performance affect scatter, throughput, durability, and stray light. A coating's performance depends on wavelength and incidence angle. | Request the inspection convention and coating test data, with the tested wavelength range and incidence angle clearly stated. |
| 7. Confirm mounting, documentation, and delivery needs | Define how the window will be retained, cleaned, packed, inspected, and delivered to its destination. | Specify the mounting contact area, any required sealing or edge clearance, protective packaging, drawing revision, inspection records, and destination-specific shipping documentation. | Mounting stress can distort a precision window. Clear documentation and suitable packaging help protect the optic and support receiving inspection. | Review the approved drawing, inspection report, packaging requirements, and applicable import or shipping documents before ordering. |
Specification note: Example values are starting points, not universal acceptance limits. Final tolerances should be set from the optical system's performance requirements and confirmed with the fabricator.
